ADDITIONAL CUBIC FOOTAGE WITH LOWERED REAR DECK

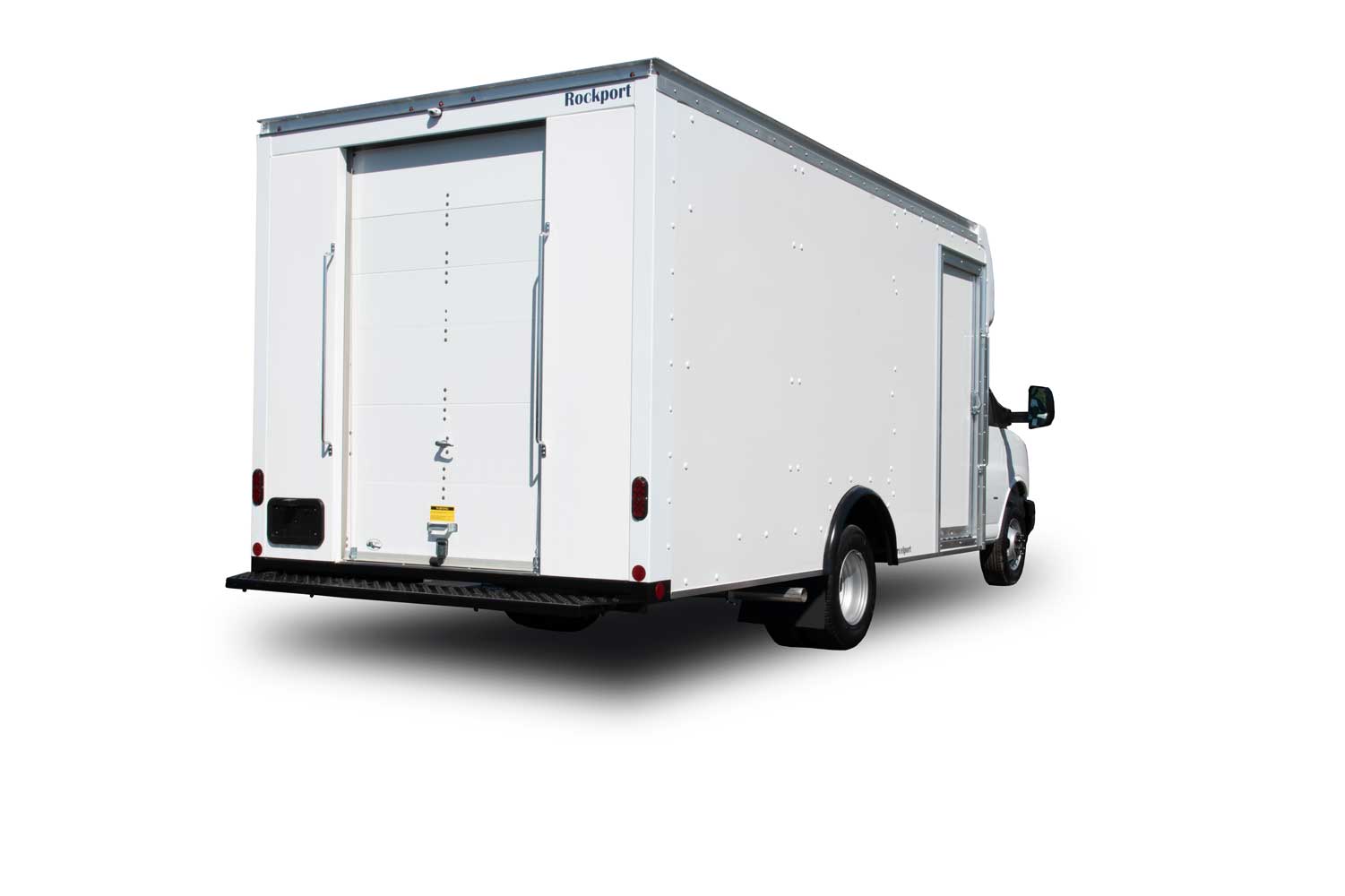

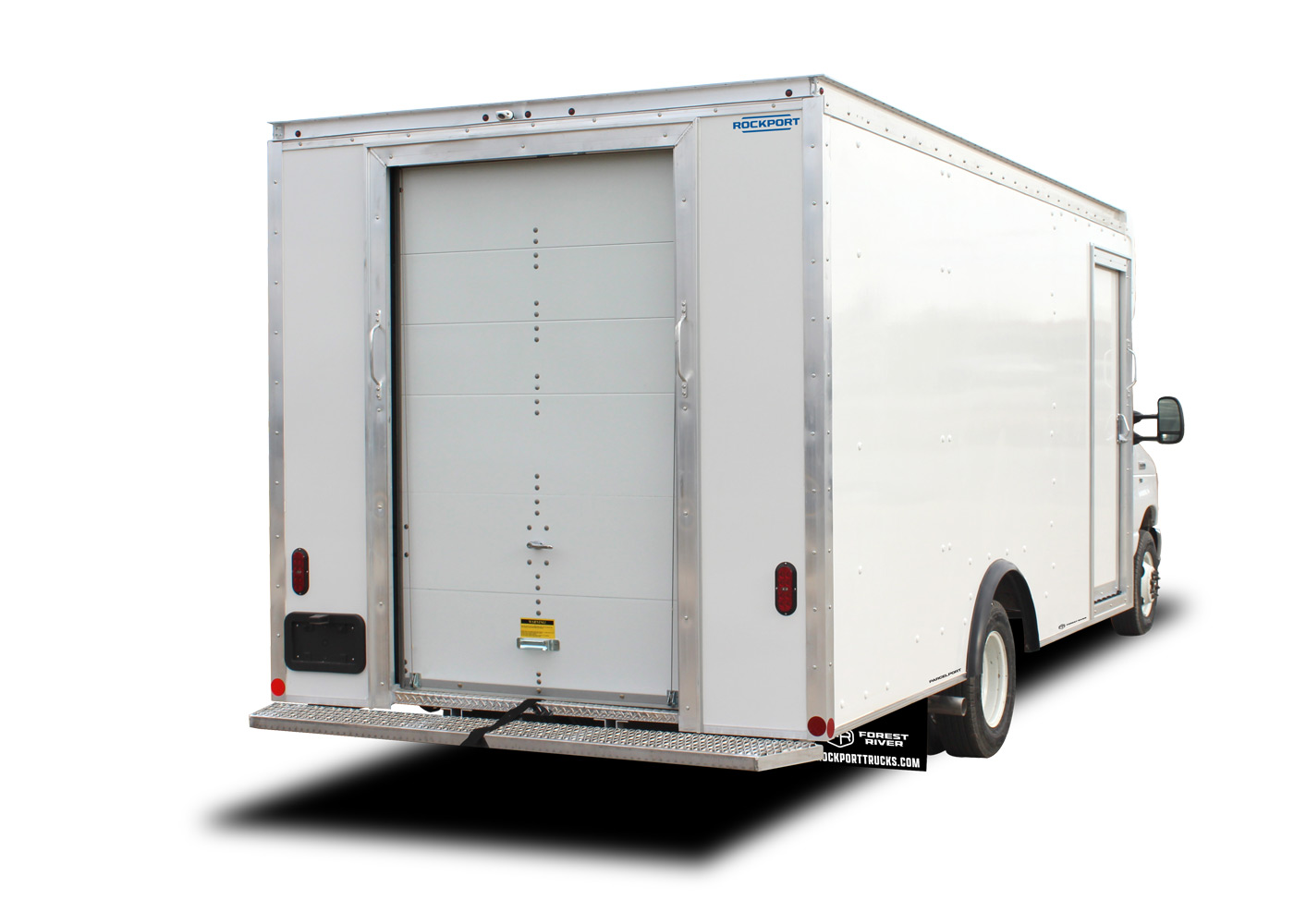

Designed around a focus group of operators, Parcelport was created from the feedback of the Parcel Delivery Industry. Operators shared their experiences about products they used on a daily basis, what worked for them and what didn’t. We listened, took notes and brought the Parcelport to market. Parcelport incorporates many standard features such as Rocktop fiberglass wind fairing, rubberized flooring to keep cargo clean, dry and provide increased foot traction, translucent roof for increased interior light, an exclusive 29” aluminum rear drop floor for a lower ease of entry. Available side and rear door options and various shelving packages help make Parcelport the perfect fit.

Specifications



Pool Chassis Options:

 Click on a chassis to view specs
NOTE – Dimensions reflected are for 2027 E-Series chassis changes.

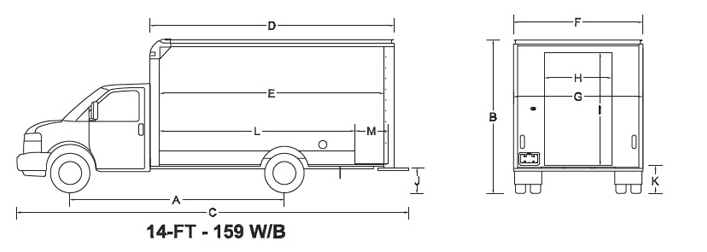

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Load Width:
(H) Door Opening Width:
(I) Door Opening Height:
(J) Ground To Bumper:
(K) Ground To Floor:
(L) Main Floor:
(M) Drop Floor:
12' SRW
6' 6"
138"
111"
21' 6"
13'
12'
80"
78"
50"
81.5"
18.5"
21.5"
10'
2' 2"
14' SRW
6' 6"
158"
111"
23' 6"
15'
14'
80"
78"
50"
81.5"
18.5"
21.5"
12'
2' 2"
14' DRW
6' 6"
158"
111"
23' 6"
15'
14'
96"
94.25"
50"
81.5"
18.5"
21.5"
12'
2' 2"
16' DRW
6' 6"
176"
111"
25' 6"
17'
16'
96"
94.25"
50"
81.5"
18.5"
21.5"
14'
2' 2"
Mesurements

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Load Width:
(H) Door Opening Width:
(I) Door Opening Height:
(J) Ground To Bumper:
(K) Ground To Floor:
(L) Main Floor:
(M) Drop Floor:
14' SRW
6' 6"
158"
110"
24'
15'
14'
90"
88.5"
50"
81.5"
18.5"
21.5"
12'
2' 2"
16' SRW
6' 6"
176"
110"
26'
17'
16'
90"
88.5"
50"
81.5"
18.5"
21.5"
14'
2' 2"
Mesurements

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Load Width:
(H) Door Opening Width:
(I) Door Opening Height:
(J) Ground To Bumper:
(K) Ground To Floor:
(L) Main Floor:
(M) Drop Floor:
12' SRW
6' 6"
139"
114"
22'
13'
12'
80"
78"
50"
81.5"
18.5"
21.5"
10'
2' 2"
14' SRW
6' 6"
159"
114"
24'
15'
14'
80"
78"
50"
81.5"
18.5"
21.5"
12'
2' 2"
14' DRW
6' 6"
159"
114"
24'
15'
14'
96"
94.25"
50"
81.5"
18.5"
21.5"
12'
2' 2"
16' DRW
6' 6"
177"
114"
26'
17'
16'
96"
94.25"
50"
81.5"
18.5"
21.5"
14'
2' 2"
Mesurements



STANDARD FEATURES & UPGRADE OPTIONS

Print
Standard
  • Rocktop Aerodynamic Air Fairing
  • Extruded Aluminum Front Corner Posts
  • FRP Front Wall

Options
  • Rocktop Air Faring with No Cab Roof Cutout
Standard
  • Full Width 12” Grip Strut Step Bumper, Aluminum

Options
  • Rubber Dock Bumpers
Options
  • Front End Alignment – Performed on a Hunter Alignment System
  • Chassis PDI
  • DOT Inspection
  • Additional Chassis Leaf Springs
  • Chassis Stretch
  • OnStar Relocation (GM Product Only)
  • Satellite Antenna Radio Relocation
  • Chrome Wheel Simulators
  • Sumo Springs
  • Super Springs
Standard
  • Roll-Up Rear Door, 50” Opening, Composite
  • Interior Handle Release

Options
  • Swing Rear Doors, 47.5” Opening, Twin 50/50
  • Windows, 12” X 18”
Options
  • Side Sliding Doors with Stepwell, Roadside and/or Curbside
  • Side Swing Door with Stepwell, 32” or 36”, Roadside and/or Curbside
  • Side Swing Door, 36” or 48”, FRP with Cam-Bar or Dead Bolt Locks
  • Side Roll-Up Door, 36”, 50” or 60”, Roadside and/or Curbside
  • Side Door Stirrup Step
  • Pull-Out Side Steps - 1 or 2 Steps
  • Stepwell Cover
  • Windows, 12” X 18”
Standard
  • FMVSS Lights and Reflectors
  • Recessed LED Clearance Lights
  • LED Cargo Dome Lamp with Switch (3-Way on Cutaway Only) - 17’ or Longer Get 2 Dome Lamps
  • LED Tail Lights on Rear Vertical Posts (Availability on Select Models)

Options
  • Additional LED Cargo Area Dome Lamps
  • LED Cargo Dome Lamps with Motion Sensors
  • Exterior LED Flood Lamps
  • Rear Back-Up Alarm
  • Rear Back-Up Camera System
  • Rear Proximity Sensors, Upper and Lower
  • Side Scene Lights
  • Strobe Lights
Standard
  • 3/8” FRP Sidewalls
  • Side Skirting to Conceal Frame and Components for Cleaner Appearance, Increased Fuel Economy
  • 12” Grab Handles at Rear Door

Options
  • Rub Rails, Aluminum
  • Crosswalk Mirror, Rear
  • 34” Grab Handles
Standard
  • Bulkhead Set Back for added Driver Seat Travel
  • Full Height Walk-Through Bulkhead with Sliding Door

Options
  • First Aid Kit
  • Fire Extinguisher, 10-B:C 2.5 lb. or 40-B:C 5.5 lb.
  • Safety Triangle Kit
  • Side Wall Scuff Plate, Galvanized Steel or Aluminum Treadplate, 12” or 24” High
  • Front Wall Scuff Plate, Galvanized Steel or Aluminum Treadplate, 12” or 24” High
  • 3/8” or ½” Plywood Liner with Z-Posts
  • Solid Bulkhead, No Pass Through
Standard
  • Exclusive 29” Aluminum Rear Drop Floor for lower Ease of Entry
  • Interior Cargo Floor Length is True to Body Length
  • Crossmembers, 3 ½” Formed Steel
  • Rubberize Coin “Tuff Ply” Flooring over 1 1/8” Marine Grade Plywood
  • Wheel Wells, Coated Steel
  • Mud Flaps
  • Undercoating

Options
  • 1 1/8” Extruded Aluminum Plank Floor
  • 1 1/8” Laminated Hardwood Floor
  • Steel or Aluminum Treadplate Overlay
  • Polyurethane Floor Finish
  • Fuel Sending Unit Access Cover
Standard
  • Translucent Seamless Sheet with Anti-Snag Interior Roof Bows Located on 24” Centers

Options
  • Aluminum Roof Skin
  • Ceiling Liner, Luan
  • Roof Bows on 12” or 16” Centers
Options
  • E-Track – Surface Mounted– Sidewall and/or Front Wall
  • E-Track Shoring Bar
  • E-Track Ratchet Straps (2)
  • Floor Mounted Bull Rings
  • Tie Slats – Sidewall and/or Front Wall
  • D-Rings – Sidewall and/or Front Wall
Options
  • Fold-Up 2 Shelf Unit, Aluminum
  • Fixed Shelves, 20” Deep, Aluminum and Wood
  • Adjustable Shelves, 12” or 18” Deep, Steel and Wood
Standard
  • 12-Guage Steel Rear Structure with FRP overlay
  • Flush Rear Sill
Options
  • Generator Compartment, Vented Door, Interior Insulation – Floor Mounted
  • Generator – Gas 4,000 -7,000 Watts
  • Generator – Diesel 5,000 – 10,000 Watts
  • Inverter 1,200 – 3,000 Watts
  • Shore Line Power Plug and Cord, 30 or 50 Amp, Breaker Box
  • Power Outlets, Interior and/or Exterior, 110V
  • Flood Lamps, LED, Exterior, 110V
  • Side Scene Lights, LED, Exterior, 110V
Options
  • Vent – 10” X 10” Louvered – Sidewall
  • Vent – 14” X 14” Roof, Power or Non-Power
  • Heater – Chassis Driven
  • Heat / AC – Chassis Driven
  • Heat / AC – Generator and/or Shore Power Driven
Options
  • Sidewall Foam Board (Requires Optional Z-Post)
  • Floor Insulation
  • Ceiling Foam Board Insulation
  • Rear Header and Rear Insert Insulation


Videos

Some videos may show features or options not available on all products. Contact our sales representatives or your local dealer if you have questions about standard and optional body configurations.
