QUALITY OPTIONS COME STANDARD

With quality and flexibility as a leading consideration, Rockport is pushing the bar higher with industry leading innovations built into every Rockport body. Features include Aluminum or FRP construction, Aluminum or Translucent Roofing; various flooring options include Laminated Hardwood with interlocking joints for maximum strength, Extruded Aluminum, Marine Grade Plywood and Steel or Aluminum Treadplate Overlay. Many other available options allow you to customize The Rock to best suit the needs of your specific application for many years of reliable service.

Specifications



Pool Chassis Options:

 Click on a chassis to view specs

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Load Width:
(H) Door Opening Width:
(I) Door Opening Height:
(J) Ground To Bumper:
(K) Ground To Floor:
(L) Bumper To Floor:
10' SRW
7'
138"
124"
19' 7"
11'
10'
80"
76.25"
71"
78.5"
20.5"
38.75"
18.25"
12' SRW
7'
138"
124"
21' 7"
13'
12'
80"
76.25"
71"
78.5"
20.5"
38.75"
18.25"
14' SRW
7'
158"
124"
23' 7"
15'
14'
80"
76.25"
71"
78.5"
20.5"
38.75"
18.25"
12' DRW
7'
138" Or 158"
124"
21' 7"
13'
12'
96"
92.25"
87.25"
78.5"
20.5"
38.75"
18.25"
14' DRW
7'
158"
124"
23' 7"
15'
14'
96"
92.25"
87.25"
78.5"
20.5"
38.75"
18.25"
15' DRW
7'
158"
124"
24' 7"
16'
15'
96"
92.25"
87.25"
78.5"
20.5"
38.75"
18.25"
16' DRW
7'
176"
124"
25' 7"
17'
16'
96"
92.25"
87.25"
78.5"
20.5"
38.75"
18.25"
17' DRW
7'
176"
124"
26' 7"
18'
17'
96"
92.25"
87.25"
78.5"
20.5"
38.75"
18.25"
18' DRW
7'
190"
124"
27' 7"
19'
18'
96"
92.25"
87.25"
78.5"
20.5"
38.75"
18.25"
Mesurements

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Load Width:
(H) Door Opening Width:
(I) Door Opening Height:
(J) Ground To Bumper:
(K) Ground To Floor:
(L) Bumper To Floor:
10' SRW
6' 6"
138"
120"
19' 6.5"
11'
10'
80"
76.25"
71"
72.5"
20.5"
38.5"
18.125"
12' SRW
6' 6"
138"
120"
21' 6.5"
13'
12'
80"
76.25"
71"
72.5"
20.5"
38.5"
18.125"
14' SRW
6' 6"
156"
120"
23' 6.5"
15'
14'
80"
76.25"
71"
72.5"
20.5"
38.5"
18.125"
10' DRW
6' 6"
138"
120"
19' 6.5"
11'
10'
90"
86.25"
82"
72.5"
20.5"
38.5"
18.125"
12' DRW
6' 6"
138"
120"
21' 6.5"
13'
12'
90"
86.25"
82"
72.5"
20.5"
38.5"
18.125"
14' DRW
6' 6"
156"
120"
23' 6.5"
15'
14'
90"
86.25"
82"
72.5"
20.5"
38.5"
18.125"
15' DRW
6' 6"
156"
120"
24' 6.5"
16'
15'
90"
86.25"
82"
72.5"
20.5"
38.5"
18.125"
16' DRW
6' 6"
176"
120"
25' 6.5"
17'
16'
90"
86.25"
82"
72.5"
20.5"
38.5"
18.125"
17' DRW
6' 6"
176"
120"
26' 6.5"
18'
17'
90"
86.25"
82"
72.5"
20.5"
38.5"
18.125"
Mesurements

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Load Width - ALUM:
(G) Load Width - FRP:
(H) Door Opening Width:
(I) Door Opening Height:
(J) Ground To Bumper:
(K) Ground To Floor:
(L) Bumper To Floor:
10' SRW
7'
139"
126"
20' 1"
11'
10'
80"
76.25"
78.34"
71"
78.5"
22"
40.25"
18.25"
12' SRW
7'
139"
126"
22' 1"
13'
12'
80"
76.25"
78.34"
71"
78.5"
22"
40.25"
18.25"
14' SRW
7'
156"
126"
22' 1"
13'
12'
80"
76.25"
78.34"
71"
78.5"
22"
40.25"
18.25"
12' DRW
7'
139"
126"
22' 7"
13' 6"
12' 6"
96"
92.25"
94.34"
87.25"
78.5"
22"
40.25"
18.25"
14' DRW
7'
159"
126"
22' 7"
13' 6"
12' 6"
96"
92.25"
94.34"
87.25"
78.5"
22"
40.25"
18.25"
15' DRW
7'
159"
126"
24' 1"
15'
14'
96"
92.25"
94.34"
87.25"
78.5"
22"
40.25"
18.25"
16' DRW
7'
177"
126"
25' 1"
16'
15'
96"
92.25"
94.34"
87.25"
78.5"
22"
40.25"
18.25"
17' DRW
7'
177"
126"
26' 1"
17'
16'
96"
92.25"
94.34"
87.25"
78.5"
22"
40.25"
18.25"
18' DRW
7'
190"
126"
27' 1"
18'
17'
96"
92.25"
94.34"
87.25"
78.5"
22"
40.25"
18.25"
Mesurements

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Load Width - ALUM:
(G) Load Width - FRP:
(H) Door Opening Width:
(I) Door Opening Height:
(J) Ground To Bumper:
(K) Ground To Floor:
(L) Bumper To Floor:
10' SRW
6' 6"
136"
118"
19' 6"
11'
10'
90"
86.67"
89.25"
82"
78.5"
20"
38"
18.125"
12' SRW
6' 6"
136"
118"
21' 6"
13'
12'
90"
86.67"
89.25"
82"
78.5"
20"
38"
18.125"
14' SRW
6' 6"
159"
118"
23' 6"
15'
14'
90"
86.67"
89.25"
82"
78.5"
20"
38"
18.125"
15' SRW
6' 6"
159"
118"
24' 6"
16'
15'
90"
86.67"
89.25"
82"
78.5"
20"
38"
18.125"
15' SRW
7'
159"
124"
24' 6"
16'
15'
90"
86.67"
89.25"
82"
78.5"
20"
38"
18.125"
Mesurements

Drop Ship Chassis Options:
Autocar, Freightliner, Mitsubishi Fuso, Hino, International Trucks, Isuzu, Kenworth, Mack, Nissan, Mercedes-Benz Sprinter, Peterbilt, Volvo, Western Star, Motiv Electric.


STANDARD FEATURES & UPGRADE OPTIONS

Print
Standard
  • Aerodynamic Aluminum Top Radius
  • Extruded Aluminum Front Corner Posts
  • High Impact Resistant Front Corner Caps
  • FRP Front Wall

Options
  • Rocktop Air Fairing with Full Height Access Door
  • Rocktop Air Faring with No Cab Roof Cutout
  • Rocktop Air Faring with No Cab Roof Cutout with above Cab Storage
  • Front Cabover “Attic” - 42”
  • Nose Cone
Standard
  • Full Width 12” Steel Pooched Step Bumper, Finished Black

Options
  • Grip Strut Bumper, Steel or Aluminum
  • Chicago Style Bumper
  • ICC Bumper
  • Rear Backsplash Cover
  • Dock Extensions, 6” or 12”
  • Rubber Dock Bumpers
  • Class-3 Receiver Hitch
  • Electric Brake Controller
Options
  • Front End Alignment – Performed on a Hunter Alignment System
  • Chassis PDI
  • DOT Inspection
  • Additional Chassis Leaf Springs
  • Chassis Stretch
  • OnStar Relocation (GM Product Only)
  • Satellite Antenna Radio Relocation
  • Chrome Wheel Simulators
  • Sumo Springs
  • Super Springs
Standard

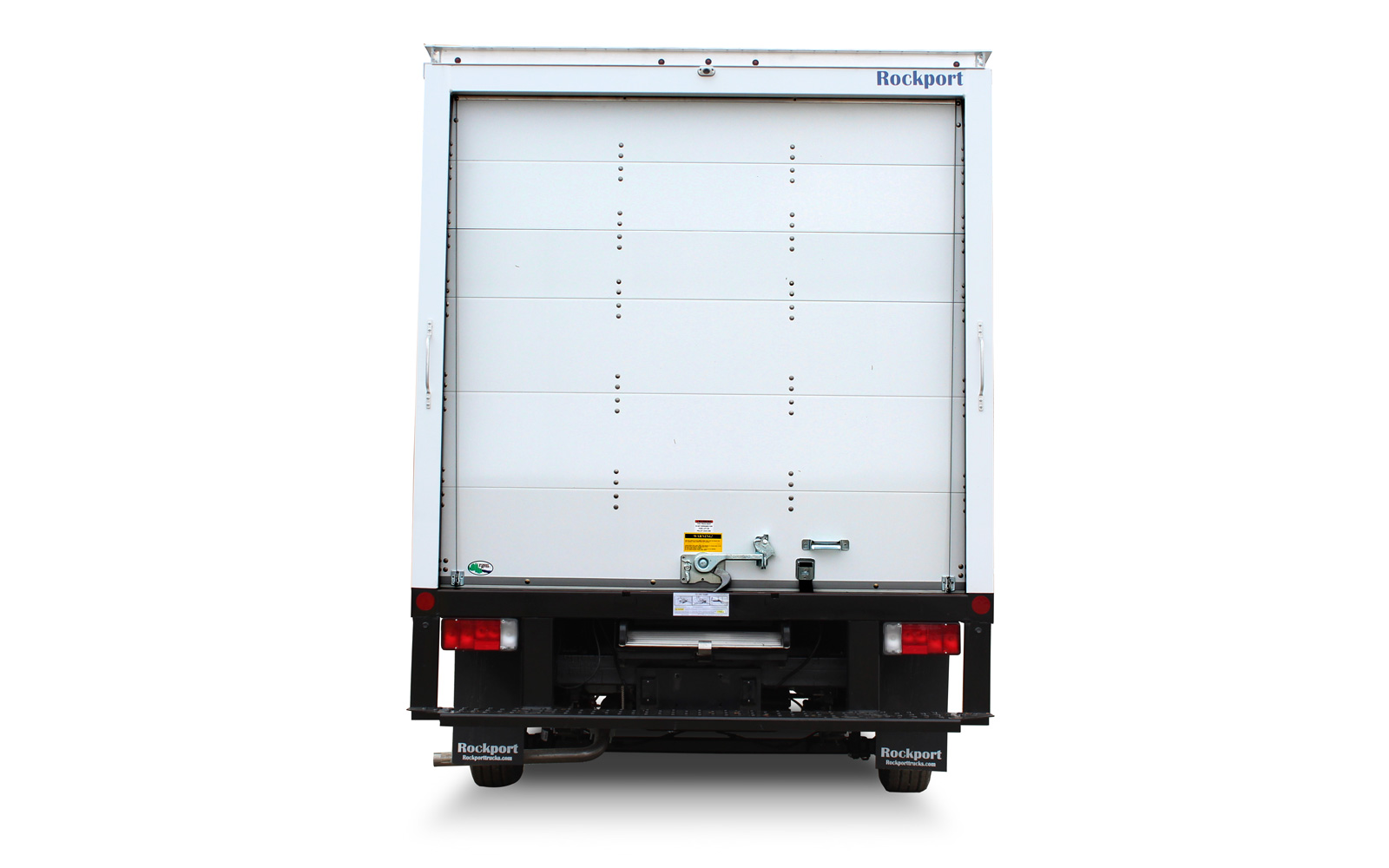

  • Roll-Up Rear Door, Full Width, Composite
  • Interior Handle Release

Options

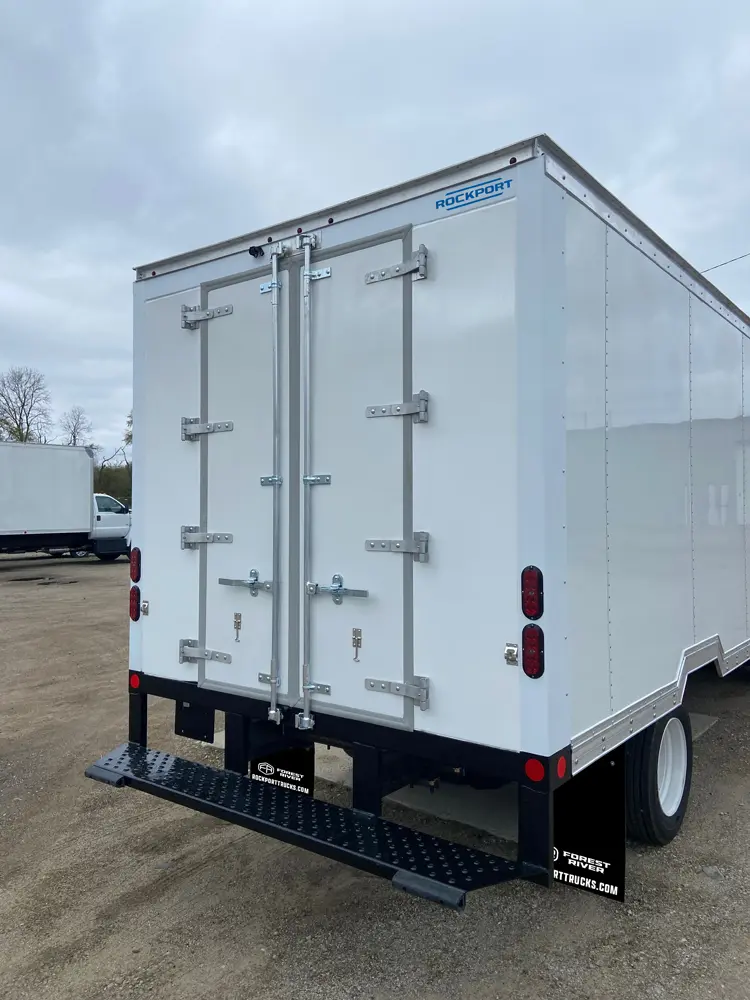

  • Swing Rear Doors, 47.5” Opening, Twin 50/50 or 70/30
  • Swing Rear Doors, Full Width 50/50, FRP with Cam-Bar or Dead Bolt Locks
  • Swing Rear Doors, Full Width Bi-Fold, FRP with Cam-Bar Locks
  • Insulated Rear Roll-Up Door
  • Enforcer Lock for Roll-Up Door
  • Windows, 12” X 18”
Options
  • Side Sliding Doors with Stepwell, Roadside and/or Curbside
  • Side Swing Door with Stepwell, 32” Or 36”, Roadside and/or Curbside
  • Side Swing Door, 36” or 48”, FRP with Cam-Bar or Dead Bolt Locks
  • Side Roll-Up Door, 36”, 50”, 60”, 10’ and 12’, Roadside and/or Curbside
  • Side Door Stirrup Step
  • Pull-Out Side Steps - 1 or 2 Steps
  • Stepwell Cover
  • Windows, 12” X 18”
Standard
  • FMVSS Lights and Reflectors
  • Recessed LED Clearance Lights
  • LED Cargo Dome Lamp with Switch (3-Way on Cutaway Only) - 17’ or Longer get 2 Dome Lamps
  • LED Tail Lights on Rear Vertical Posts (Availability on Select Models)

Options
  • Additional LED Cargo Area Dome Lamps
  • LED Cargo Dome Lamps with Motion Sensors
  • Exterior LED Flood Lamps
  • Rear Back-Up Alarm
  • Rear Back-Up Camera System
  • Rear Proximity Sensors, Upper and Lower (Requires Optional Back-Up Camera System)
  • LED Side Scene Lights
  • Strobe Lights
Standard
  • .040 Pre-Painted White Aluminum Sidewalls or 3/8” FRP
  • Solid Bucked Rivets on Overlapping Joints and Structural Bonding Intermediate Posts (Aluminum Sidewalls Only)
  • 12” Grab Handles at Rear Door

Options
  • Underbody Tool Box, Steel or Aluminum
  • Crosswalk Mirror, Rear
  • Rub Rails, Aluminum
  • 34” Grab Handles
  • ½” FRP Sidewalls
  • Removeable Rear Access Ladder
  • 15” Aluminum Body Skirting
Standard
  • Set Back Bulkhead for Added Seat Travel (Cutaways Only)
  • Sliding Bulkhead Door (Cutaways Only)

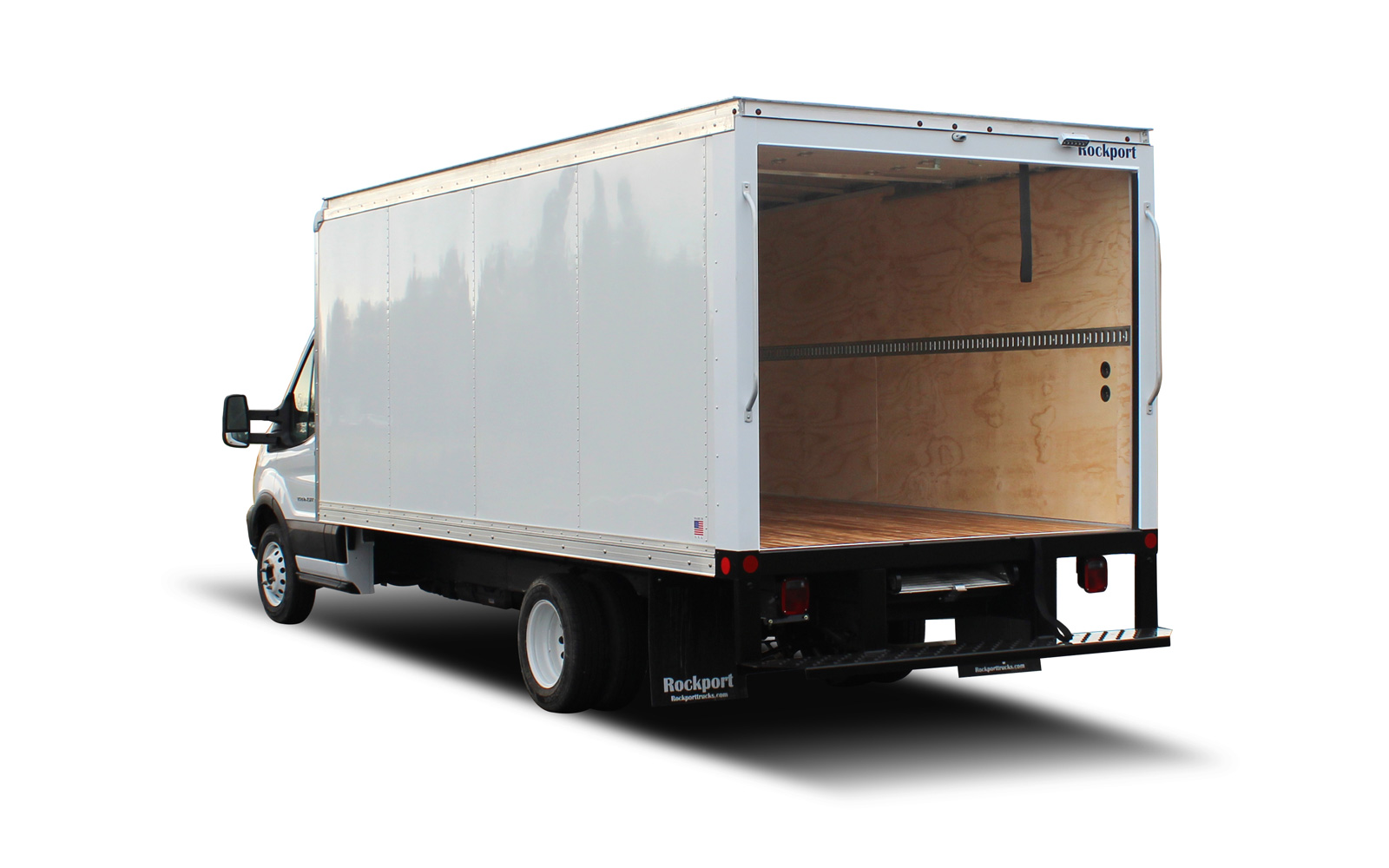

  • 3/8” Plywood Liner (Aluminum Sidewalls Only)

Options
  • First Aid Kit
  • Fire Extinguisher, 10-B:C 2.5 lb. or 40-B:C 5.5 lb.
  • Safety Triangle Kit
  • Side Wall Scuff Plate, Galvanized Steel or Aluminum Treadplate, 12” or 24” High
  • Front Wall Scuff Plate, Galvanized Steel or Aluminum Treadplate, 12” or 24” High
  • 1/2” Plywood Liner
  • Solid Bulkhead, No Pass Through (Cutaways Only)
Standard
  • Interior Cargo Floor Length is True to Body Length
  • 5” Long Sills with 3” Formed Steel Crossmembers on 16” Centers
  • 1 1/8” Laminated Hardwood Flat Floor
  • Mud Flaps
  • Undercoating

Options
  • 1 1/8” Extruded Aluminum Plank Flat Floor
  • 1 1/8” Plywood Floor
  • Rear Threshold Plate, 24” Deep Steel Treadplate
  • Wheel Wells, Coated Black
  • Rubberize Coin “Tuff Ply” Flooring Overlay (Requires Optional Plywood Floor)
  • Steel or Aluminum Treadplate Overlay
  • Polyurethane Floor Finish
  • Fuel Sending Unit Access Cover
  • Crossmembers on 12” Centers
  • Underfloor Pull Out Ramp, 24” or 30” Wide - 10’, 12’, 14’, and 16’ Long
Standard
  • Seamless Aluminum Sheet with Anti-Snag Interior Roof Bows Located on 24” Centers

Options
  • Translucent Roof Skin
  • Ceiling Liner, Luan
  • Ladders Racks
  • Catwalk – Aluminum Gripstrut Centered on Ladder Racks
  • Roof Bows on 12” or 16” Centers
Standard
  • D-Rings on Sidewalls - Recessed on Aluminum or Surface Mounted on FRP

Option
  • E-Track – Recessed on Aluminum or Surface Mounted on FRP – Sidewall and/or Front Wall
  • E-Track Shoring Bar
  • E-Track Ratchet Straps (2)
  • Floor Mounted Bull Rings
  • Tie Slats – Sidewall and/or Front Wall
Options
  • Fold-Up 2 Shelf Unit, Aluminum
  • Fixed Shelves, 20” Deep, Aluminum and Wood
  • Adjustable Shelves, 12” or 18” Deep, Steel and Wood
Standard
  • Coated Steel Rear Structure with 12-Gauge Sides and Header Coated White, 10-Gauge Footer
  • Flush Rear Sill with Drain Trough

Option
  • Stainless Steel
Options
  • Railgate or Tuck-away
  • Steel or Aluminum Platform
  • Cart Stops (Aluminum Only)
  • In-Cab Cutoff Switch
  • Remote Pendant
  • Above Bed Option (Railgate Only)
Options
  • Generator Compartment, Vented Door, Interior Insulation – Floor Mounted
  • Generator – Gas 4,000 -7,000 Watts
  • Generator – Diesel 5,000 – 10,000 Watts
  • Inverter 1,200 – 3,000 Watts
  • Shore Line Power Plug and Cord, 30 or 50 Amp, Breaker Box
  • 110V Power Outlets, Interior and/or Exterior
  • Flood Lamps, LED, Exterior, 110V
  • Side Scene Lights, LED, Exterior, 110V
Options
  • Vent – 10” X 10” Louvered – Sidewall
  • Vent – 14” X 14” Roof, Power or Non-Power
  • Heater – Chassis Driven
  • Heat / AC – Chassis Driven
  • Heat / AC – Generator and/or Shore Power Driven
Options
  • Sidewall Foam Board (FRP Requires Optional Z-Post)
  • Floor Insulation (Reflectex)
  • Ceiling Foam Board Insulation
  • Front Radius and Corner Cap Insulation
  • Rear Header and Rear Insert Insulation


Literature
